Clean Rooms

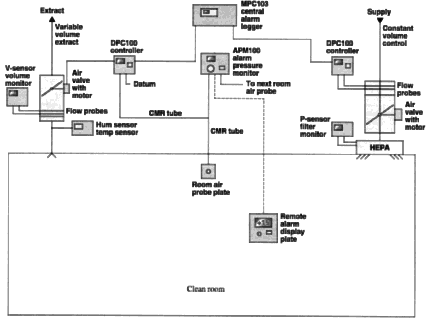

Description: A clean room is controlled by a DPC100 controller
providing constant volume into the room via a CMR air valve. A P-Sensor
monitors the HEPA filter. A DPC100 controller measures the room pressure and
adjusts the CMR air valve until the setpoint of i.e. 15 Pa is achieved. The
DPM100 monitors the pressure against an adjacent room and provides alarm
facilities both locally and remotely. A CMR humidity
